Product Details

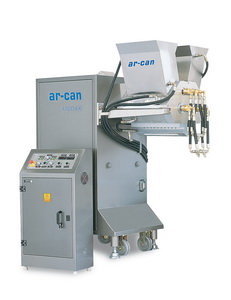

With the original accessories, ideal production, accurate weight and shape control of the product are guaranteed. Due to their specially designed frames, our extruders can approach all conveyors laterally. Thus, it is possible to situate more than one extruder consecutively.

During production, mass is fed to the hopper with an homogenous consistency. Special drums take the product in and mold. Speed of the extruded ropes can be adjusted variably. In order to obtain an ideal rope on the belt, our machines have height adjustment feature.

Providing that your product is sensitive to heat, head of the extruder is tempered. Hopper, drums, body and mould of our extruders are all water jacketed. According to demand, they can be heated or cooled in various temperatures and separately. With this way, according to the product and process, special cooling or heating can be practiced. Therefore, ideal production is maintained.

Our extruders are an ideal addition to our Slab Bar Lines. They have accurate shape and weight distribution throughout the working width.

Changing the mold is very easy. By this way, you can produce various products within a day.

You can use our extruder as a depositor with our newly released depositing head addition. This system also controls the movement mechanism of the cooling tunnel.

All of our extruders are designed in accordance with the hygiene rules and for multi way usages. They are easy to be operated and the maintenance can be handled easily.

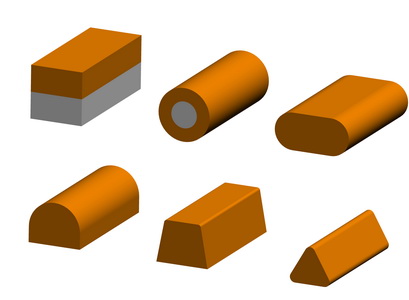

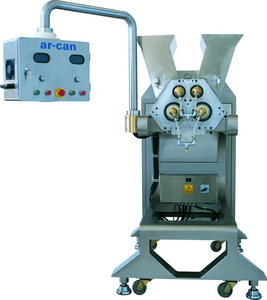

UNDD type of extruder is used for extruding double layered ropes. Operating principle is similar with the UND.  Namely, it is suitable for all mass types which can be produced by using UND.

The machine is equipped with two feeding hoppers. If both hoppers are fed with the same mass, one layered product is obtained. It is equipped with two independent geared motors and each motor’s speed can be variably changed separately. Therefore, it is possible to increase or decrease the thickness of each layer in finished product. Rope numbers differ in accordance with the rope dimensions and the working width.

Technical Specifications

• Working widths vary between 300mm and 1000mm.
• By means of the special drum technology equipped with rotary blades, it is possible to run with both soft and hard masses.
